The products described in this website are covered by the EU declaration of conformity, so they are intended for the EU market, with the declared intended purpose.
For non-EU markets such as the US, please contact CANÈ S.p.A. to identify the correct product and the corresponding destination of use.
Crono SC portable pump was successfully tested for Treprostinil infusion, obtaining an indication for use in pulmonary hypertension in addition to palliative care.
The possibility of selecting reduced partial volumes compatible with the amount of drug to be administered and the possibility of setting infusion rates from 5 to 2,000 µl/hour in increments of 1 µl/hour allow it to be used in patients suffering from this particular rare disease.
The pump is indicated in subcutaneous infusions allowing 4 modes of administration:
Continuous
Bolus on request
Clinical bolus (managed by the doctor)
Combined (continuous + bolus on demand + clinical bolus)
The pump is equipped with a keypad lock to prevent incorrect or unauthorised administration.
The liquid crystal display shows physician and patient information on pump programming, operation and diagnostics.
| Pump dimensions | 76 x 49 x 29 mm (3.00 x 1.94 x 1.15 in). |
|---|---|

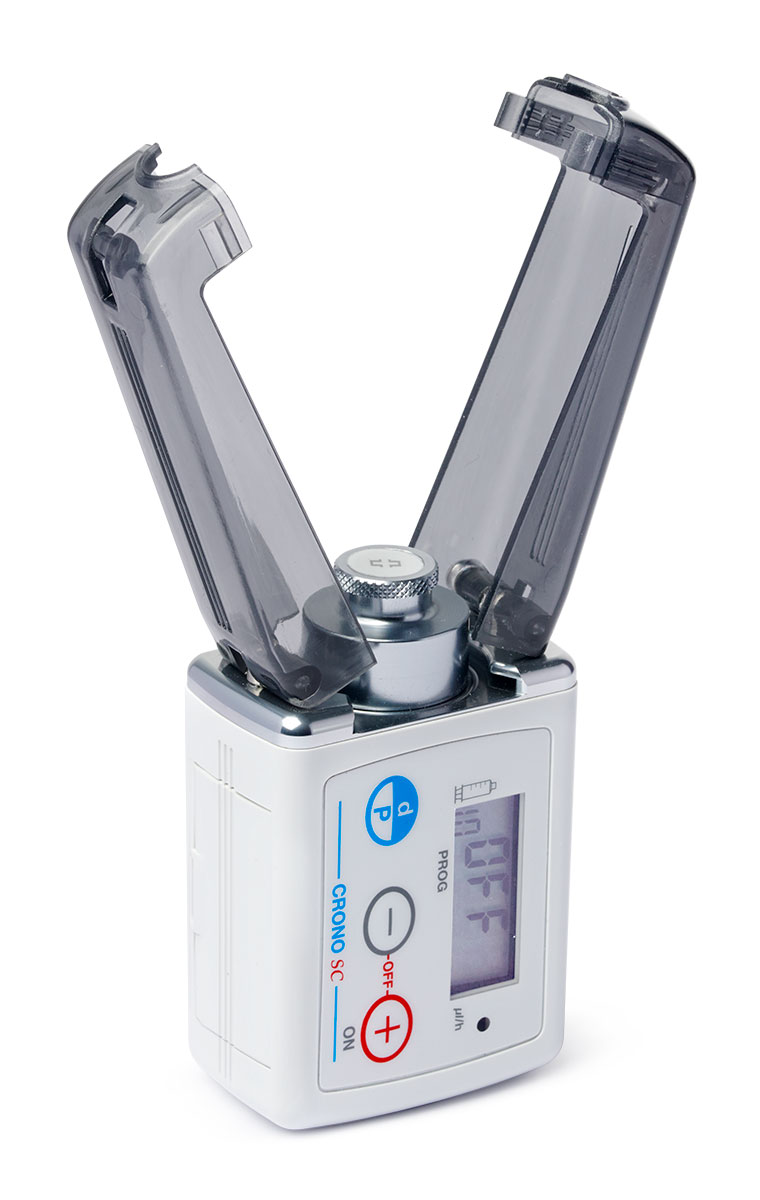

| Pump dimensions (with protective wings) | 138 x 49 x 29 mm (5.43 x 1.94 x 1.15 in). |
| Pump weight | 115 g (including battery). |
| Weight (with protective wings) | 127 g (4.46 oz.), including battery. |
| Battery | 3 Volt Lithium battery, mod. 123 A (battery life approximately 100 infusions). |
| Single-use reservoirs | Special 10 and 20 ml reservoirs with “Luer-Lock” universal safety fitting. |
| Administration doses | Selectable, from 1 ml to 20 ml in 1 ml increments. |
| Priming function | Only available at the start of the infusion. The maximum volume that can be delivered is 1500 μl in 5 μl increments. |
| Flow rates selectable | From 5 to 2000 μl/h in 1 μl/h increments: It is possible to disable this function by setting 0 μl/h |
| Bolus dose | Selectable, from 10 μl to 2000 μl in 10 μl increments. It is possible to disable this function by setting 0 μl. |
| Clinical bolus | Selectable, from 10 μl to 2000 μl in 10 μl increments. It is possible to disable this function by setting 0 μl. |
| Minimum interval between bolus doses |
|
| Bolus doses in one hour | From 0 to 12 bolus doses. The function may be disabled by setting no,Ln. |
| Flow rate precision | +/-2%. |
| Maximum occlusion pressure | 2,5 bar +/- 1,5 (PL1), 4 bar +/-2 (PL2), 5,5 bar +/- 2 (PL3). |
| Display | Liquid crystal display (dimensions 1.1 x 2.8 cm). |
| Motor | Coreless DC motor. The microcontroller controls the rotation speed using an infrared encoder. |
| Safety circuits | They check that the device is functioning correctly, intervening in the event of any fault with acoustic signals and messages on the display. |
| Anti free-flow system | To avoid a non controlled flow inside the delivery set due to the action of the force of gravity. |
| Supplied standard equipment | Ambulatory infusion pump, infusion pump carry-case, elastic belt, collar strap, fabric case, 2 batteries, battery cover opening tool, 2 user manuals (doctor and patient). |
| Guarantee | Two years for manufacturing defects. |
