The CRONO infusion pumps are designed for subcutaneous infusions in iron chelation therapy.

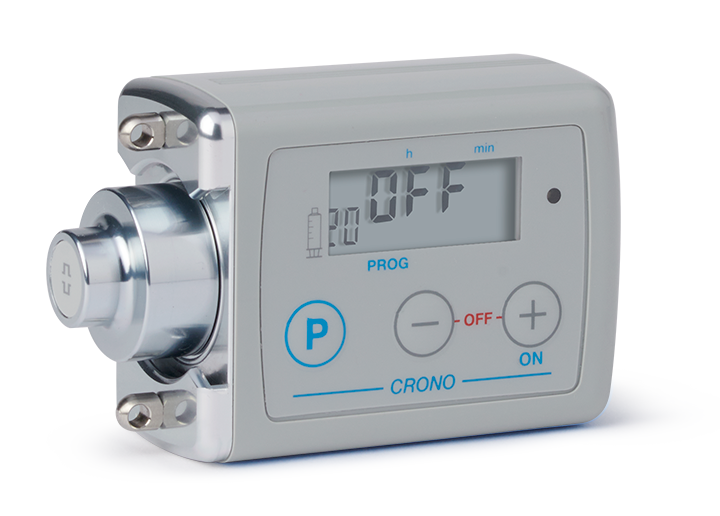

CRONO and CRONO 30 a synthesis of high technology and innovative design.
Our small size and light weight make our infusion pumps ideal for home use, giving the patient the freedom to carry out daily activities during therapy.
CRONO uses dedicated 10 and 20 ml syringes, CRONO 30 uses dedicated 30 ml reservoirs.
The feed mechanism, which acts directly on the rubber piston of the reservoir, enables the pump to achieve a high thrust force combined with excellent precision in drug delivery. An innovative infusion control system allows the infusion to continue automatically after the occlusion has been removed.
CRONO and CRONO 30 are equipped with a liquid crystal display that shows physician and patient information on pump programming, operation and diagnostics.
| Pump dimensions | 76 x 49 x 29 mm (3.00 x 1.94 x 1.15 in). |
|---|---|
| Weight | 115 g (4.06 oz.), including battery |
| Battery | Lithium CR 123A 3V (battery life about 100 infusions). |
| Single-use reservoirs | Dedicated, (10 and 20 ml capacity) and a “Luer-Lock” universal safety attachment. |
| Partial volume | Selectable, from 1 to 10 ml in 1 ml increments (10 ml reservoir). Selectable, from 1 to 20 ml in 1 ml increments (20 ml reservoir) |
| Delivery time |
|
| Available priming volume | 1.5 ml. |
| Flow rate precision | +/-2%. |
| Occlusion pressure | 6.0 bar +/-2.0. |
| Shot Volume | 22 microlitres (shot: quantity administered for every rotation of the motor). |
| Post-occlusion bolus | About 1.5 ml. |
| Settings memory | All settings are automatically stored in a flash memory which is retained even if the device is left without a battery. |
| Display | Liquid crystal display (LCD). |
| Motor | Coreless DC motor, the rotation of which is controlled by an infrared system. |
| Settings lock | Two configurable levels. |
| Electronic circuit with twin microcontrollers | Ensures a more reliable and safer infusion system |
| Safety circuits | These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display. |
| Equipment supplied | Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual. |
| Guarantee | Two years for manufacturing defects. |
| Pump dimensions | 80 x 47 x 30 mm (3.14 x 1.85 x 1.18 in). |
|---|---|
| Weight | 125 g (4.40 oz.), including battery. |
| Battery | Lithium CR 123A 3V (battery life about 100 infusions). |
| Single-use reservoirs | Dedicated, with a 30 ml capacity and a “Luer-Lock” universal safety attachment. |
| Partial volume | From 1 to 30 ml in steps of 1 ml. |
| Delivery time | Programmable from: 1 h to 99 h in steps of 15 min. |
| Available priming volume | 1.5 ml. |
| Flow rate precision | +/-2%. |
| Occlusion pressure | 4,5 bar +/-2,0. |
| Shot Volume | 33 microlitres (shot: quantity administered for every rotation of the motor). |
| Post-occlusion bolus | About 1.2 ml. |
| Settings memory | All settings are automatically stored in a flash memory which is retained even if the device is left without a battery. |
| Display | Liquid crystal display (LCD) (1,1 x 2,8 cm; 0,43 x 1,0 in). |
| Motor | Coreless DC motor, the rotation of which is controlled by an infrared system. |
| Settings lock | Three configurable levels. |
| Electronic circuit with twin microcontrollers | Ensures a more reliable and safer infusion system |
| Safety circuits | These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display. |
| Equipment supplied | Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual. |
| Guarantee | Two years for manufacturing defects. |
